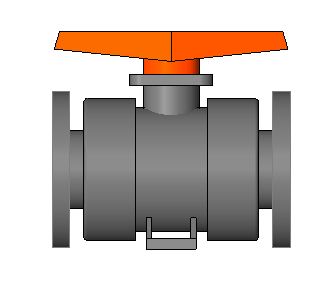

Item # TB1400F, True Union Ball Valve - 4 PVC with FPM O-rings and Flanged End Connections" On Hayward Flow Control

Batch CAD Cart (0) ▾

Request Information Add to CAD Cart

Offered in PVC, CPVC, and now PVDF materials. PVC and CPVC valves are NSF/ANSI 61-G Listed. O-rings are FPM or EPDM, with reversible PTFE seats. Sizes 1/2” – 2” rated at 250psi / 2-1/2” to 4”rated at 235 PSI at 70°F Non Shock. Ratings may be subject to material and connection type.

Unit of Measure

Specifications
Dimensional attributes

Size	N/A 4"
Body Material	N/A PVC
Seals	N/A FPM
End Connection	N/A Flanged
Weight	N/A 26.60 lb12.08 kg
Cv Coefficient	N/A 600.0
Flow Configuration	N/A Bi-directional
Series	N/A TB

A	N/A 12.30 in312.42 mm
H	N/A 7.37 in187.20 mm
B	N/A 4.52 in114.81 mm
C	N/A 8.56 in217.42 mm
D1	N/A 6.50 in165.10 mm
D2	N/A 6.50 in165.10 mm
F	N/A 17.22 in437.39 mm
