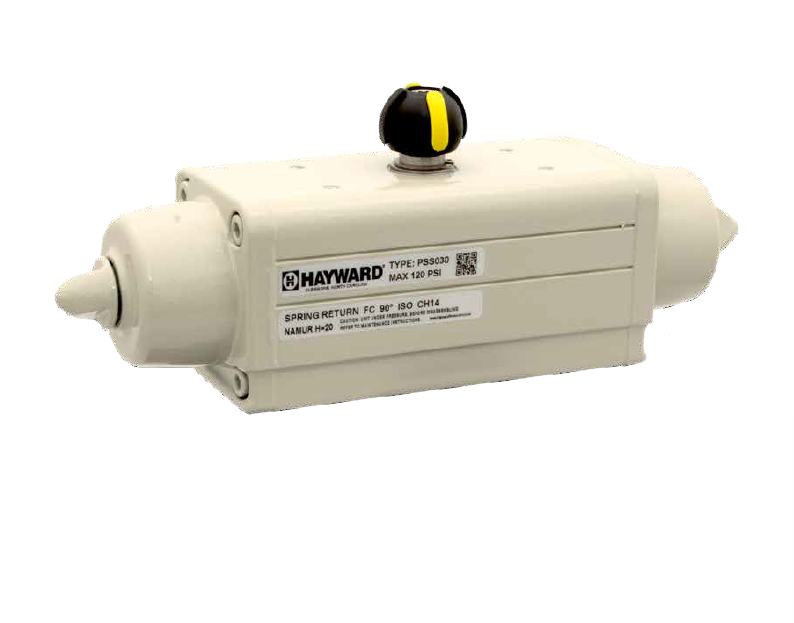

  • Stand-Alone-Actuators---PSS
    KEY FEATURES
  • Scotch Yoke Quarter-Turn Design - Less Friction than Rack & Pinion
  • Ideal for Corrosive Atmosphere and Environments
  • Stainless Steel Drive Shaft/Indicator Shaft and Stainless Steel Hardware Standard
  • Available in Double Acting and Spring Return Models
  • Adjustable Rotation Angle
  • Linear Motion - No Teeth or Gears
  • Permanent Lubrication
  • Lower Air Consumption than Rack & Pinion
  • Smaller Size Compared to Equivalent Rack & Pinion Torque Rating
  • Position Indicator
  • Namur-Style Top-Works Mounting
  • Namur-Style Solenoid Mounting
  • ISO 5211 Mounting Base


    • OPTIONS
  • Fail Open for Spring Return
  • Solenoid Valves with Optional Voltages
  • Positioners, Limit Switches, Speed Controllers


    • SPECIFICATIONS
  • HOUSING: Robust Aluminum Body with Three-layer Epoxy/Urethane Coating for Superior Corrosion and Abrasion Resistance
  • OUTPUT SHAFT: 303 Stainless per ASTM A314
  • SEALS: NBR and FPM
  • MINIMUM AIR PRESSURE: 80psi
  • MAXIMUM AIR PRESSURE: 120psi
  • OPERATION: Scotch Yoke
  • AIR PORT CONNECTIONS: 1/8" NPT
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Add to CAD Cart

Item #

Torque Output (in-lbs) @ 80 PSI

Air Consumption

Stroke Time

Minimum Air Pressure

Maximum Air Pressure

Weight

CAD

Revit

N/A 133 N/A 5.5 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 1.20 kg2.65 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 266 N/A 9.8 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 1.95 kg4.30 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 469 N/A 17.7 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 3.00 kg6.61 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 796 N/A 33.6 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 5.90 kg13 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 1062 N/A 48.8 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 6.80 kg15 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 2124 N/A 91.5 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 11.80 kg26.01 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 3186 N/A 122.0 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 16.50 kg36.38 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
N/A 4248 N/A 170.9 in³ N/A 0.5 s N/A 80 psi N/A 120 psi N/A 22.07 kg50.04 lb N/A CAD Icon (for items table) N/A Revit Icon (for items table)
